LSL Aluminium handlebar Adventure X04, Ø28.6 mm, black

LSL Aluminium handlebar Adventure X04, Ø28.6 mm, black
LSL Aluminium handlebar Adventure X04, Ø28.6 mm, black
LSL Aluminium handlebar Adventure X04, Ø28.6 mm, black
LSL Aluminium handlebar Adventure X04, Ø28.6 mm, black

€89.95 gross

Prices incl. VAT plus shipping costs

Article number: LSL-128AX04SW
Immediately available

Product details

LSL X-Bar Aluminium handlebar Adventure X04, 1 1/8 inch, 28.6mm diameter, black colour,

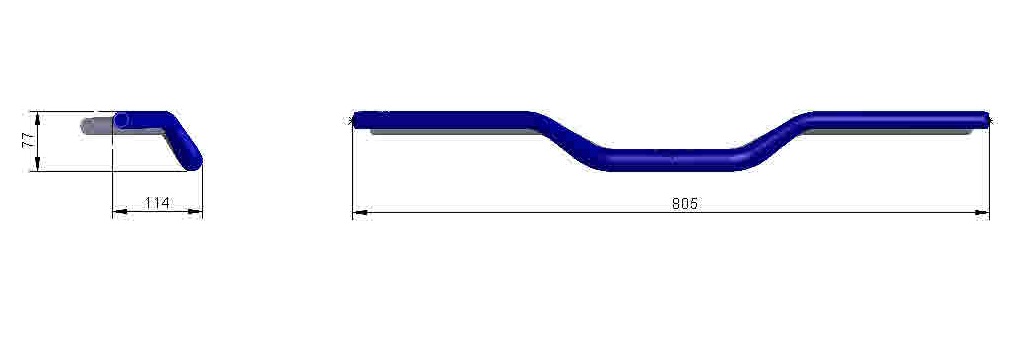

width 805mm, height 77mm, depth 114mm, wall thickness 4.5/4mm, clamping area 146mm, grip tube length 220mm

General description

LSL stands for excellent handlebar quality.
This is due to the company's own selection of materials and material treatment, as well as the handlebar manufacturing quality optimised over decades.
The X-Bar handlebar impress with double bending stiffness compared to standard handlebars.
The basis for this exceptional stability of the handlebar is the large diameter in the clamping area and the uniform, conical transition to the grip area.
The handlebar flexes less and offers more reserves under extreme loads.
The diameter of the handlebar is 28.6mm in the clamping area and tapers towards the grip tube to 22.2 mm.
The wall thickness at the handlebar ends is 4 mm (inner Ø 14mm). The surface is matt bead-blasted or high-gloss polished and, depending on the handlebar type, available in up to four anodised colours.
In addition, we also offer a version with carbon fibre sheathing.
As already known in the high-tech bicycle sector, LSL now also offers a variant of the X-Bar handlebar with genuine carbon fibre sheathing.
Here, the aluminium tube is covered with a carbon fibre sleeve. This sandwich construction achieves a further reduced weight with the same stiffness as the handlebar.
The manufacturing process is absolute precision work. This is the only way to maintain the required tolerances of a motorcycle handlebar.
When mounting this handlebar, proceed with great care to ensure that the transparent top layer of the carbon fibre material is not damaged.
The handlebar are supplied without holes for the anti-twist mechanism of the switch fittings.
To best transfer the position of the holes from the standard handlebar, we recommend using an LSL drilling template.
All LSL handlebar are supplied with ABE.
The range of models is huge and is expanded with new entries every year.
In the ABE, you will find reliably documented which handlebar type fits your motorcycle and is approved.
Generally, the assignments in the ABE are without restrictions.
However, there are exceptions.
For example, LSL offers handlebar mounts for many models, with which you can also mount, fit, assemble an X-Bar handlebar to a motorcycle with a standard 22.2 mm mounting.
Therefore, refer to the entry for your motorcycle in the ABE.
If you do not find your vehicle in the ABE, the ABE can be used as accompanying documentation for an individual approval.
Scope of delivery: 1 piece
Care instructions:
• For all handlebars and their surface variants, only use acid- and alkali-free cleaner!
• Never clean in direct sunlight and do not let the cleaner dry on.
• Avoid contact with brake fluid, brake cleaner, oil, fuel, polishing pastes with abrasive particles etc.; immediately wipe off any drips with a soft cloth.
• Before application cleaning agents, test compatibility in an inconspicuous area!
• No guarantee or warranty for improper cleaning and care.
Diameter: 1 inch, 28.6mm
6047a1509618e767c23d3f8b26a08e2acd41362b_138RL01SW_404970
LSL Sport handlebargrip, 7/8 inch (22.2 mm), 125 mm, black, hard
LSL-138RL01SW
€19.94
89bafe1c0dbf81c88e39c13603a4391e6a2e16f7_138RL01_par_404969
LSL Sport handlebarhandlebar grip, 7/8 inch (22.2 mm), 125 mm, grey, soft
LSL-138RL01GR
€19.94
4f13aee28bf985df3f0640b6c6d640c265164c13_138RL02SW_par_404972
LSL Sport handlebargrip, 7/8 inch (22.2 mm), 120 mm, black, hard
LSL-138RL02SW
€19.94
476fa72330ad3469bfae357ebfbd27b4d0306dfb_138RL02GR_404971
LSL Sport handlebar grip rubber, 7/8 inch (22.2 mm), 120 mm, grey, soft
LSL-138RL02GR
€19.94
138CL01-02_437806
LSL CLUBMAN handlebar grips 22 mm, 120 mm long, black
LSL-138CL02
€24.95
f478a2cbb8a5d45cb8171fe1a61b29bce43b4509_138G125SW_stil_404962
LSL handlebar grip rubber, 7/8 inch (22.2 mm), 125 mm, black
LSL-138G125SW
€39.95
bc4079b05496d1bc03cb5fc775a4248a15f9e708_138G125SI_stil_404961
LSL handlebarhandlebar grip, 7/8 inch (22.2 mm), 125 mm, silver
LSL-138G125SI
€39.95
e9a904ed9f7c9e6f819354afd9b9af1ccf682619_138G125GO_stil_404960
LSL handlebar grip rubber, 7/8 inch (22.2 mm), 125 mm, gold
LSL-138G125GO
€39.95
7fd52670714a8dfce0f8cdf80f0f57b3e973d85d_138EG125SW_404959
LSL ERGONIA handlebar grips, 7/8 inch (22.2 mm), 125 mm, black
LSL-138EG125SW
€44.95
75bdb33fdaae5e4f4ae76dd718b53cd11e43995a_138EG125SI_404958
LSL ERGONIA handlebar handlebar grip rubber, 7/8 inch (22.2 mm), 125 mm, silver
LSL-138EG125SI
€44.95
7eddad9c93165a4de633784bb372c088ca1f76d4_138EG125RT_404957
LSL ERGONIA handlebar grip rubber, 7/8 inch (22.2 mm), 125 mm, dark red
LSL-138EG125RT
€44.95
7e897a40245c69517129cafb378c8db74e0f2f5c_138EG125GO_404956
LSL ERGONIA handlebar grip, 7/8 inch (22.2 mm), 125 mm, gold
LSL-138EG125GO
€44.95
a2fa0a566579ef6855084275e4abdfcd86d8d976_138_NO132SWd1b80298_576d_45e3_a16d_8e73cff24f16_404954
LSL NOVA-RS handlebar Grip Rubber, 7/8 inch (22.2 mm), 132 mm, Black
LSL-138-NO132SW
€44.95
25130a19cdd6a8e766e7a238ea952b65d1ab60ee_138_NO132TI1191c484_e654_4f04_b6cb_5da2880b3fd0_404955
LSL NOVA-RS handlebar grip, 7/8 inch (22.2 mm), 132 mm, titanium
LSL-138-NO132TI
€44.95
020a7162be75407417630999093597da78a493a8_122ST01MB_stil_159d70094_11e5_4101_a66d_6ae6e0b5fbed_403647
LSL handlebar Brace Cross-Bar in matte black
LSL-122ST01MB
€24.95
f4c161942922523f136bab727f41b61fdadc8322_122ST02SWG_404533
LSL CROSS-BAR handlebar brace, two-piece clamps
LSL-122ST02SWG
€29.95
b8af85726351c2c27817da696044776c916ae3ba_122ST02SIG_404531
LSL CROSS-BAR handlebar brace, two-piece clamps
LSL-122ST02SIG
€29.95
a73d783508c8bf34386c96ba27e9644de0cb9da0_122ST02SW_404532
LSL CROSS-BAR handlebar brace, two-piece clamps
LSL-122ST02SW
€29.95
07f81fccd0b46ae4f75da1485fc1897905161a0e_122ST02SI_404530
LSL CROSS-BAR handlebar brace, two-piece clamps
LSL-122ST02SI
€29.95
ManufacturerModelAdditional designationTypeModel yearVariant/VersionHomologationccm
ApriliaRX125KT EURO52021 - 2021ABE125
ApriliaRX125KT EURO52021 - 2023ABE125
ApriliaRX125KX EURO42018 - 2020ABE125
ApriliaSX125KT EURO52021 - 2023ABE125
ApriliaSX125KX EURO42018 - 2020ABE125
ApriliaTuareg 660XB EURO52022 - 2023ABE660
ApriliaTuareg 660XC EURO52022 - 2023ABE660
BMWF900R4R90 EURO52020 - 2023ESAABE900
BMWF900R4R90 EURO52021 - 2023DTCABE900
BMWF900R4R90 EURO52020 - 2023ABE900
BMWF900R4R90 EURO52021 - 2023DTC ESAABE900
BMWF900RA24R90r EURO52021 - 202135kW DTCABE900
BMWF900RA24R90r EURO52021 - 202335kW DTC ESAABE900
BMWF900RA24R90r EURO52020 - 202335kW ESAABE900
BMWF900RA24R90r EURO52020 - 202335kWABE900
BMWR nineTScrambler1N12 EURO42020 - 2020spoked wheelABE1200
BMWR nineTRacer1N12 EURO42017 - 2019ABE1200
BMWR nineT1N12 EURO42020 - 2020spoked wheelABE1200
BMWR nineTUrban G/S1N12 EURO42020 - 2020cast wheelABE1200
BMWR nineTUrban G/S1N12 EURO42017 - 2019ABE1200
BMWR nineTRacer1N12 EURO42020 - 2020spoked wheelABE1200
BMWR nineTScrambler1N12 EURO42016 - 2019ABE1200
BMWR nineT1N12 EURO42017 - 2020ABE1200
BMWR nineTRacer1N12 EURO42020 - 2020cast wheelABE1200
BMWR nineTPure1N12 EURO42017 - 2019ABE1200
BMWR nineT1N12 EURO42020 - 2020cast wheelABE1200
BMWR nineTScrambler1N12 EURO42020 - 2020cast wheelABE1200
BMWR nineTUrban G/S1N12 EURO42020 - 2020spoked wheelABE1200
BMWR nineTR1ST2014 - 2016ABE1200
BMWR nineTPureRN12 EURO52021 - 2023cast wheelABE1200
BMWR nineTScramblerRN12 EURO52021 - 2023cast wheelABE1200
BMWR nineTUrban G/SRN12 EURO52021 - 2023cast wheelABE1200
BMWR nineTUrban G/SRN12 EURO52021 - 2023spoked wheelABE1200
BMWR nineTClassicRN12 EURO52021 - 2021ABE1200
BMWR nineTScramblerRN12 EURO52021 - 2023spoked wheelABE1200
BMWR nineTPureRN12 EURO52021 - 2023spoked wheelABE1200
BMWR nineTRN12 EURO52021 - 2023ABE1200
DucatiMonster 1200M62014 - 2016ABE1200
DucatiMonster 1200MA EURO42017 - 2020ABE1200
DucatiMonster 1200MB EURO42017 - 2017ABE1200
DucatiMonster 1200RM62016 - 2016ABE1200
DucatiMonster 1200RMA EURO42017 - 2019ABE1200
DucatiMonster 1200RMB EURO42017 - 2017ABE1200
DucatiMonster 1200SM62014 - 2016ABE1200
DucatiMonster 1200SMA EURO42017 - 2020ABE1200
DucatiMonster 1200SMB EURO42017 - 2020ABE1200
DucatiScrambler 1100Tribute Pro1K EURO52022 - 2023ABE1100
DucatiScrambler 1100Sport Pro1K EURO52021 - 2022ABE1100
DucatiScrambler 1100Dark Pro1K EURO52021 - 2023ABE1100
DucatiScrambler 1100Sport Pro2K EURO52021 - 2022ABE1100
DucatiScrambler 1100SportKG EURO42018 - 2020ABE1100
DucatiScrambler 1100KG EURO42018 - 2020ABE1100
DucatiScrambler 1100SpecialKG EURO42018 - 2020ABE1100
DucatiStreetfighter V4Lamborghini1F EURO52023 - 2023ABE1100
DucatiStreetfighter V41F EURO52021 - 2023ABE1100
DucatiStreetfighter V4S1F EURO52021 - 2023ABE1100
DucatiStreetfighter V4FA EURO42020 - 2020ABE1100
DucatiStreetfighter V4SFA EURO42020 - 2020ABE1100
FanticCaballero 125DeluxeCA132021 - 2024ABE125
FanticCaballero 125ScramblerCA132021 - 2024ABE125
FanticCaballero 125RallyCA132021 - 2024ABE125
FanticCaballero 125Flat TrackCA132021 - 2024ABE125
FanticXEF 125FA13 EURO52021 - 2024ABE125
FanticXMF 125FA13 EURO52021 - 2024ABE125
HondaCB1000RNeo Sports Cafe +SC80 EURO42019 - 2020ABE1000
HondaCB1000RNeo Sports CafeSC80 EURO42018 - 2020ABE1000
HondaCB1000RNeo Sports CafeSC80 EURO52021 - 2022ABE1000
HondaCB1000RSC80 EURO52023 - 2023ABE1000
HondaCRF1000L Africa TwinSD042016 - 2016ABE1000
HondaCRF1000L Africa TwinDTCSD042016 - 2016ABE1000
HondaCRF1000L Africa TwinAdventure SportsSD06 EURO42018 - 2019ABE1000
HondaCRF1000L Africa TwinDTCSD06 EURO42017 - 2019ABE1000
HondaCRF1000L Africa TwinSD06 EURO42017 - 2019ABE1000
HondaXL 750 TransalpRD16 EURO52023 - 35kWABE750
HondaXL 750 TransalpRD16 EURO52023 - ABE750
Husqvarna701 EnduroHUSQVARNA701 EURO42016 - 2020ABE701
Husqvarna701 EnduroHUSQVARNA701 EURO52021 - ABE701
Husqvarna701 SupermotoHUSQVARNA701 EURO42016 - 2020ABE701
Husqvarna701 SupermotoHUSQVARNA701 EURO52021 - 2024ABE701
KawasakiZ650RSER650M EURO52022 - 2022ABE650
KawasakiZ650RSER650MA2 EURO52022 - 2022ABE650
KawasakiZ650RSER650R EURO5+2023 - ABE650
KawasakiZ650RSER650RA2 EURO5+2023 - ABE650
KawasakiZ900ZR900D EURO42019 - 2019ABE900
KTM1290 Super Duke RKTM Superduke EURO52020 - 2023ABE1290
KTM1390 Super Duke RKTM Super Duke EURO5+2024 - DABE1350
KTM690 SMC RKTM 690 LC4 EURO42019 - 2020ABE690
KTM690 SMC RKTM 690 LC4 EURO52021 - ABE690
KTM790 AdventureRKTM 790 Adventure EURO42019 - 2020ABE790
KTM790 AdventureKTM 790 Adventure EURO42019 - 2020ABE790
KTM890 AdventureRKTM R2 ADVENTURE EURO52021 - 2023ABE890
KTM890 AdventureKTM R2 ADVENTURE EURO52020 - 2023ABE890
KTM890 AdventureLKTM R2 ADVENTURE EURO52022 - 2023ABE890
KTM990 DukeKTM R2 DK EURO5+2024 - ABE990
SuzukiGSX-S1000WDG0 EURO42017 - 2021ABE1000
SuzukiGSX-S1000FWDG0 EURO42017 - 2020ABE1000
SuzukiGSX-S1000GTWEK0 EURO52022 - 2023ABE1000
SuzukiGSX-S1000S KatanaWDG0 EURO42019 - 20211ABE1000
SuzukiGSX-S1000S KatanaWEK0 EURO52022 - 2023ABE1000
SuzukiV-Strom 1050XTWEF0 EURO52020 - 2022ABE1050
SuzukiV-Strom 1050WEF0 EURO52020 - 2023ABE1050
SuzukiV-Strom 800DEWEM0 EURO52023 - ABE800
SuzukiV-Strom 800DEWEM1 EURO52023 - 35 kWABE800
TriumphTiger Explorer 1200V13VG2012 - 2015ABE1200
TriumphTiger Explorer 1200XCV13VG2013 - 2015ABE1200
TriumphTiger Explorer 1200XCV201 EURO42016 - 2017ABE1200
TriumphTiger Explorer 1200XCAV201 EURO42016 - 2017ABE1200
TriumphTiger Explorer 1200XCXV201 EURO42016 - 2017ABE1200
TriumphTiger Explorer 1200XRV201 EURO42016 - 2017ABE1200
TriumphTiger Explorer 1200XRTV201 EURO42016 - 2017ABE1200
TriumphTiger Explorer 1200XRXLRH LowV201 EURO42016 - 2017ABE1200
TriumphTiger Explorer 1200XRXV201 EURO42016 - 2017ABE1200
YamahaMT07RM33 EURO52021 - 2024ABE700
YamahaMT07RM34 EURO52021 - 2024ABE700
YamahaMT07PureRM46 EURO52024 - 2024ABE700
YamahaMT07PureRM47 EURO52024 - 2024ABE700
YamahaMT10Tourer EditionRN45 EURO42018 - 2021ABE1000
YamahaMT10SPRN45 EURO42017 - 2020ABE1000
YamahaMT10RN45 EURO42016 - 2020ABE1000
YamahaMT10RN78 EURO52022 - 2023ABE1000
YamahaMT10SPRN78 EURO52022 - 2023ABE1000
YamahaTenere 700DM07 EURO42019 - 2020ABE700
YamahaTenere 700DM08 EURO42019 - 2020ABE700
YamahaTenere 700Rally EditionDM11 EURO52021 - 2023ABE700
YamahaTenere 700DM11 EURO52021 - 2022ABE700
YamahaTenere 700World RaidDM15 EURO52022 - 2023ABE700
YamahaTenere 700World RaidDM16 EURO52023 - ABE700
YamahaXSR900RN80 EURO52022 - 2023ABE900
YamahaXSR900RN86 EURO52022 - 2023ABE900
Seller information
This website uses cookies to provide the best possible experience. More Information ...
