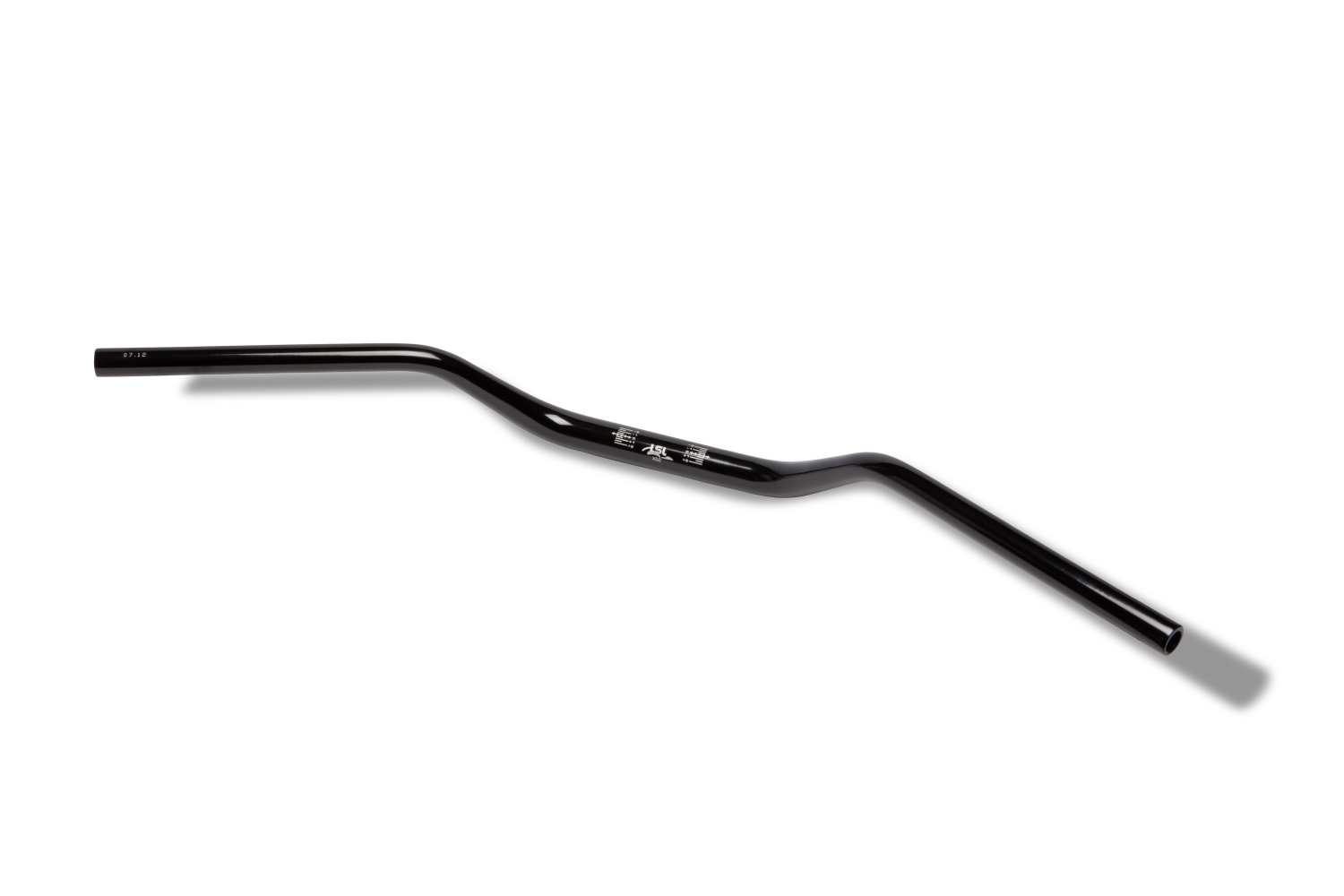

LSL X-Bar Aluminium-handlebar Naked Bike X02, 1 1/8 inch, black

LSL X-Bar Aluminium-handlebar Naked Bike X02, 1 1/8 inch, black
LSL X-Bar Aluminium-handlebar Naked Bike X02, 1 1/8 inch, black
LSL X-Bar Aluminium-handlebar Naked Bike X02, 1 1/8 inch, black
LSL X-Bar Aluminium-handlebar Naked Bike X02, 1 1/8 inch, black
LSL X-Bar Aluminium-handlebar Naked Bike X02, 1 1/8 inch, black
LSL X-Bar Aluminium-handlebar Naked Bike X02, 1 1/8 inch, black
LSL X-Bar Aluminium-handlebar Naked Bike X02, 1 1/8 inch, black
LSL X-Bar Aluminium-handlebar Naked Bike X02, 1 1/8 inch, black
LSL X-Bar Aluminium-handlebar Naked Bike X02, 1 1/8 inch, black
LSL X-Bar Aluminium-handlebar Naked Bike X02, 1 1/8 inch, black

€89.95 gross

Prices incl. VAT plus shipping costs

Product number: LSL-128AX02SW
ask for delivery time

Product details

LSL X-Bar Aluminium-handlebar Naked Bike X02, 1 1/8 inch, 28.6mm diameter, black, width 789mm, height 101mm, depth 173mm, wall thickness 4.5/4mm, clamping area 145mm, grip tube length 210mm

General description

LSL stands for excellent handlebar quality.
This is due to the company's own selection of materials and material treatment, as well as decades of optimised manufacturing quality of the handlebar.
The X-Bar handlebar impresses with double the bending stiffness compared to standard handlebars.
The basis for this exceptional stability of the handlebar is the large diameter in the clamping area and the uniform, conical transition to the grip area.
The handlebar flexes less and offers more reserves under extreme loads.

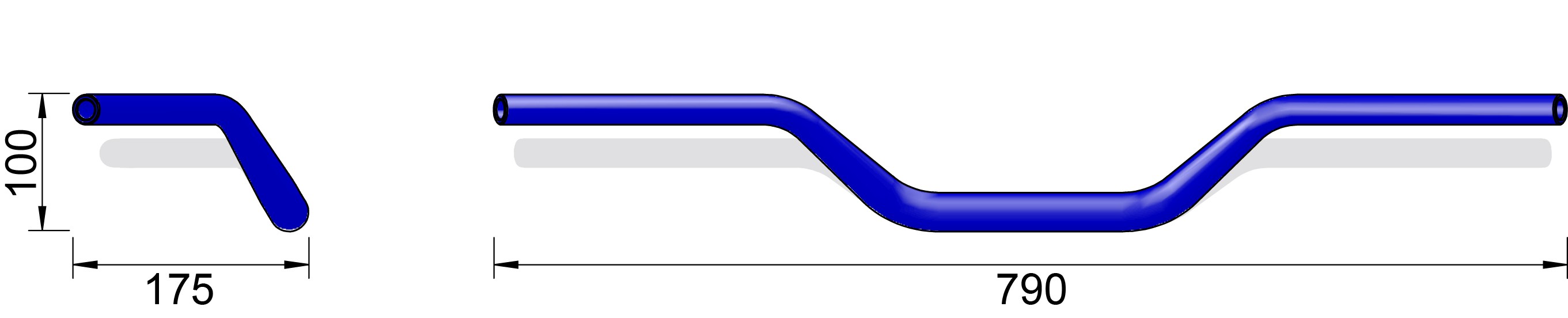

The diameter of the handlebar is 28.6mm in the clamping area and tapers to 22.2 mm towards the grip tube.
The wall thickness at the handlebar ends is 4 mm (internal Ø 14mm). The surface is matte bead-blasted or high-gloss polished and, depending on the handlebar type, available in up to four anodised colours.

We also offer a version with carbon fibre sheathing.
As already known in the high-tech bicycle sector, LSL now also offers a version of the X-Bar handlebar with genuine carbon fibre sheathing.
Here, the aluminium tube is covered with a carbon fibre sleeve. This sandwich construction achieves a further reduced weight with the same stiffness of the handlebar.
The manufacturing involves absolute precision work. This is the only way to maintain the required tolerances of a motorcycle handlebar.
During the assembly of this handlebar, great care must be taken to avoid damaging the transparent top layer of the carbon fibre material.

The handlebar are supplied without holes for the anti-rotation device of the switchgear.
To best transfer the position of the holes from the standard handlebar, we recommend to use an LSL drilling template.

All LSL handlebar are supplied with ABE.
The model range is huge and is expanded annually with new entries.
In the ABE, you will find reliably documented which handlebar type fits your motorcycle and is approved.
Generally, the assignments in the ABE are without conditions.
However, there are exceptions.
For example, LSL offers handlebar mounts for many models, with which you can mount, fit, assemble an X-Bar handlebar on a motorcycle with standard 22.2 mm mounting.
Therefore, check the entry for your motorcycle in the ABE.
If your vehicle is not listed in the ABE, the ABE can be used as a supporting document for an individual inspection.

Scope of delivery: 1 piece

Care instructions:
• For all handlebars and their surface variants, use only acid- and alkali-free cleaners!
• Never clean in direct sunlight and do not let the cleaner dry on.
• Avoid contact with brake fluid, brake cleaner, oil, fuel, polishing pastes with abrasive particles etc.; immediately wipe up drips with a soft cloth.
• Before application cleaning products, test compatibility in an inconspicuous area!
• No guarantee or warranty for improper cleaning and care.
Diameter: 28.6mm
LSL Sport handlebargrip, 7/8 inch (22.2 mm), 125 mm, black, hard
LSL-138RL01SW
€19.94
LSL Sport handlebarhandlebar grip, 7/8 inch (22.2 mm), 125 mm, grey, soft
LSL-138RL01GR
€19.94
LSL Sport handlebargrip, 7/8 inch (22.2 mm), 120 mm, black, hard
LSL-138RL02SW
€19.94
LSL Sport handlebar grip rubber, 7/8 inch (22.2 mm), 120 mm, grey, soft
LSL-138RL02GR
€19.94
LSL CLUBMAN handlebar grips 22 mm, 120 mm long, black
LSL-138CL02
€24.95
LSL handlebar grip rubber, 7/8 inch (22.2 mm), 125 mm, black
LSL-138G125SW
€39.95
LSL handlebarhandlebar grip, 7/8 inch (22.2 mm), 125 mm, silver
LSL-138G125SI
€39.95
LSL handlebar grip rubber, 7/8 inch (22.2 mm), 125 mm, gold
LSL-138G125GO
€39.95
LSL ERGONIA handlebar grips, 7/8 inch (22.2 mm), 125 mm, black
LSL-138EG125SW
€44.95
LSL ERGONIA handlebar handlebar grip rubber, 7/8 inch (22.2 mm), 125 mm, silver
LSL-138EG125SI
€44.95
LSL ERGONIA handlebar grip rubber, 7/8 inch (22.2 mm), 125 mm, dark red
LSL-138EG125RT
€44.95
LSL ERGONIA handlebar grip, 7/8 inch (22.2 mm), 125 mm, gold
LSL-138EG125GO
€44.95
LSL NOVA-RS handlebar Grip Rubber, 7/8 inch (22.2 mm), 132 mm, Black
LSL-138-NO132SW
€44.95
LSL NOVA-RS handlebar grip, 7/8 inch (22.2 mm), 132 mm, titanium
LSL-138-NO132TI
€44.95
LSL handlebar Brace Cross-Bar in matte black
LSL-122ST01MB
€24.95
LSL CROSS-BAR handlebar brace, two-piece clamps
LSL-122ST02SWG
€29.95
LSL CROSS-BAR handlebar brace, two-piece clamps
LSL-122ST02SIG
€29.95
LSL CROSS-BAR handlebar brace, two-piece clamps
LSL-122ST02SW
€29.95
LSL CROSS-BAR handlebar brace, two-piece clamps
LSL-122ST02SI
€29.95
ManufacturerModelAdditional DesignationTypeModel YearVariant/VersionHomologationccm
ApriliaTuareg 660XB EURO52022 - 2023ABE660
ApriliaTuareg 660XC EURO52022 - 2023ABE660
BMWF700GS4G80 EURO42017 - 2017with ESAABE800
BMWF700GS4G80 EURO42017 - 2017ABE800
BMWF700GS4G80r EURO42017 - 2017ABE800
BMWF700GS4G80r EURO42017 - 2017with ESAABE800
BMWF700GSE8GS2013 - 2016ABE800
BMWF800GS4G80 EURO42017 - 20170B07ABE798
BMWF800GS4G80 EURO42017 - 2017ESAABE798
BMWF800GS4G80r EURO42017 - 201735kWABE800
BMWF800GS4G80r EURO42017 - 201735kW ESAABE800
BMWF800GSE8GS2016 - 2016ABE800
BMWF850GSAdventure4G85 EURO42020 - 202135kWABE850
BMWF850GS4G85 EURO42018 - 2020ESAABE850
BMWF850GS4G85 EURO42018 - 2020DTCABE850
BMWF850GS4G85 EURO42018 - 2020ABE850
BMWF850GSAdventure4G85 EURO42019 - 2021ABE850
BMWF850GS4G85 EURO52021 - 2022DTCABE850
BMWF850GSAdventure4G85 EURO52021 - 202135kW DTC ESAABE850
BMWF850GSAdventure4G85 EURO52021 - 2022DTCABE850
BMWF850GS4G85 EURO52021 - 2022DTC ESAABE850
BMWF850GS4G85 EURO52021 - 202235kW DTCABE850
BMWF850GSAdventure4G85 EURO52021 - 202235kW DTCABE850
BMWF850GS4G85 EURO52021 - 202235kW DTC ESAABE850
BMWF850GSAdventure4G85 EURO52021 - 2022DTC ESAABE850
BMWF850GSAdventureMG85 EURO52023 - 2023DTCABE850
BMWF850GSMG85 EURO52023 - 2023DTC ESAABE850
BMWF850GSAdventureMG85 EURO52023 - 2023DTC ESAABE850
BMWF850GSMG85r EURO52023 - 2023DTC ESAABE850
BMWF850GSAdventureMG85r EURO52023 - 2023DTCABE850
BMWF850GSMG85r EURO52023 - 2023DTCABE850
BMWR nineTRacer1N12 EURO42020 - 2020Spoked wheelABE1200
BMWR nineTScrambler1N12 EURO42020 - 2020Spoked wheelABE1200
BMWR nineTUrban G/S1N12 EURO42017 - 2019ABE1200
BMWR nineTUrban G/S1N12 EURO42020 - 2020Cast wheelABE1200
BMWR nineTRacer1N12 EURO42017 - 2019ABE1200
BMWR nineT1N12 EURO42020 - 2020Spoked wheelABE1200
BMWR nineTScrambler1N12 EURO42016 - 2019ABE1200
BMWR nineT1N12 EURO42017 - 2020ABE1200
BMWR nineTPure1N12 EURO42017 - 2019ABE1200
BMWR nineTRacer1N12 EURO42020 - 2020Cast wheelABE1200
BMWR nineTScrambler1N12 EURO42020 - 2020Cast wheelABE1200
BMWR nineT1N12 EURO42020 - 2020Cast wheelABE1200
BMWR nineTUrban G/S1N12 EURO42020 - 2020Spoked wheelABE1200
BMWR nineTR1ST2014 - 2016ABE1200
BMWR nineTUrban G/SRN12 EURO52021 - 2023Cast wheelABE1200
BMWR nineTUrban G/SRN12 EURO52021 - 2023Spoked wheelABE1200
BMWR nineTPureRN12 EURO52021 - 2023Cast wheelABE1200
BMWR nineTScramblerRN12 EURO52021 - 2023Cast wheelABE1200
BMWR nineTPureRN12 EURO52021 - 2023Spoked wheelABE1200
BMWR nineTClassicRN12 EURO52021 - 2021ABE1200
BMWR nineTScramblerRN12 EURO52021 - 2023Spoked wheelABE1200
BMWR nineTRN12 EURO52021 - 2023ABE1200
BMWR12GN12 EURO5+2024 - ABE1200
BMWR12GN12r EURO5+2024 - 35kWABE1200
BMWR12 nineTGN12 EURO5+2024 - ABE1200
BMWR12 nineTGN12r EURO5+2024 - 35kWABE1200
BMWR1200RR1ST2006 - 2014ABE1200
DucatiScrambler 1100SpecialKG EURO42018 - 2020ABE1100
DucatiScrambler 1100SportKG EURO42018 - 2020ABE1100
DucatiScrambler 1100KG EURO42018 - 2020ABE1100
DucatiScrambler 400 Sixty2KA EURO42016 - 2020ABE400
DucatiScrambler 800Icon3K EURO52021 - 2022ABE803
DucatiScrambler 800Icon3K EURO52021 - 2022ABE803
DucatiScrambler 800Icon4K EURO52021 - 2022ABE803
DucatiScrambler 800Icon4K EURO52021 - 2022ABE803
DucatiScrambler 800Desert Sled5K EURO52020 - 2024ABE800
DucatiScrambler 800Desert Sled6K EURO52021 - 2024A2ABE800
DucatiScrambler 800IconK12015 - 2016ABE803
DucatiScrambler 800K12015 - 2016ABE803
DucatiScrambler 800Full ThrottleK12015 - 2016ABE803
DucatiScrambler 800Desert SledKB EURO42017 - 2021ABE800
DucatiScrambler 800Full ThrottleKC EURO42017 - 2021ABE803
DucatiScrambler 800IconKC EURO42017 - 2021ABE803
DucatiScrambler 800Cafe RacerKC EURO42017 - 2021ABE803
DucatiScrambler 800Icon DarkKC EURO42017 - 2021ABE803
DucatiScrambler 800Full ThrottleKD EURO42017 - 2021ABE803
DucatiScrambler 800Cafe RacerKD EURO42017 - 2020ABE803
DucatiScrambler 800IconKD EURO42018 - 2020ABE803
DucatiScrambler 800Icon DarkKD EURO42020 - 2021ABE803
DucatiScrambler 800Desert SledKE EURO42017 - 2022ABE800
FanticCaballero 125DeluxeCA132021 - 2024ABE125
FanticCaballero 125ScramblerCA132021 - 2024ABE125
FanticCaballero 125RallyCA132021 - 2024ABE125
FanticCaballero 125Flat TrackCA132021 - 2024ABE125
HondaCB1100SC652013 - 2014ABE1100
HondaCRF1000L Africa TwinSD042016 - 2016ABE1000
HondaCRF1000L Africa TwinDTCSD042016 - 2016ABE1000
HondaCRF1000L Africa TwinSD06 EURO42017 - 2019ABE1000
HondaCRF1000L Africa TwinDTCSD06 EURO42017 - 2019ABE1000
HondaCRF1000L Africa TwinAdventure SportsSD06 EURO42018 - 2019ABE1000
HondaCRF1100L Africa TwinDTCSD08 EURO52020 - 2020ABE1100
HondaCRF1100L Africa TwinSD08 EURO52020 - 2024ABE1100
HondaCRF1100L Africa TwinDTCSD08 EURO52020 - 2024ABE1100
HondaCRF1100L Africa TwinAdventure SportsSD09 EURO52020 - 2024ABE1100
HondaCRF1100L Africa TwinAdventure Sports DTCSD09 EURO52020 - 2024ABE1100
HondaNC750XRC90 EURO42017 - 2020ABE750
HondaNC750XDCTRC90 EURO42016 - 2020ABE750
HondaNT1100DCTSC84 EURO52022 - ABE1084
HondaNT1100SC84 EURO52022 - ABE1084
HondaVFR1200X CrosstourerSC702012 - 2016ABE1200
HondaVFR1200X CrosstourerDTCSC702012 - 2015ABE1200
HondaVFR800X CrossrunnerRC802015 - 2016ABE800
HondaXL 750 TransalpRD16 EURO52023 - 35kWABE750
HondaXL 750 TransalpRD16 EURO52023 - ABE750
KawasakiVersys 1000LZT00A2012 - 2014ABE1000
KawasakiVersys 1000LZT00B2016 - 2016ABE1000
KawasakiVersys 1000LZT00B2015 - 2016ABE1000
KawasakiVersys 1000LZT00B EURO42017 - 2018ABE1000
KawasakiVersys 1000SELZT00C EURO42019 - 2020B1ABE1000
KawasakiVersys 1000SELZT00C EURO52022 - ABE1000
KawasakiVersys 1000LZT00C EURO52021 - E1ABE1000
KawasakiVersys 1000LZT00C EURO52022 - 2023ABE1000
KawasakiZ650RSER650M EURO52022 - 2022ABE650
KawasakiZ650RSER650MA2 EURO52022 - 2022ABE650
KawasakiZ650RSER650R EURO5+2023 - ABE650
KawasakiZ650RSER650RA2 EURO5+2023 - ABE650
KawasakiZ800ZR800A2013 - 2016ABE800
KawasakiZ800e versionZR800C2013 - 2015ZR800CCDAABE800
KawasakiZ900ZR900D EURO42019 - 2019ABE900
KawasakiZ900RSZR900C EURO42018 - 2020ABE900
KawasakiZ900RSZR900K EURO52021 - 2024ABE900
KawasakiZ900RSSEZR900K EURO52022 - 2024ABE900
KTM1290 Super Adventure RKTM Adventure EURO42017 - 2020ABE1290
KTM690 DukeKTM DUKE2012 - 2016ABE690
KTM690 DukeKTM DUKE2011 - 2011ABE690
KTM790 AdventureKTM 790 Adventure EURO42019 - 2020ABE790
KTM890 AdventureRKTM R2 ADVENTURE EURO52021 - 2023ABE890
KTM890 AdventureKTM R2 ADVENTURE EURO52020 - 2023ABE890
KTM890 AdventureLKTM R2 ADVENTURE EURO52022 - 2023ABE890
Moto GuzziV100 MandelloMG EURO52022 - 2023ABE1000
Moto GuzziV100 MandelloSMG EURO52023 - ABE1000
Moto GuzziV85 TTKW EURO42019 - 2020ABE850
Moto GuzziV85 TTKY EURO52021 - 2023ABE850
Moto GuzziV85 TTTravelKY EURO52020 - 2023ABE850
Moto GuzziV85 TTMB EURO52021 - 202335kWABE850
Moto GuzziV85 TTTravelMB EURO52021 - 202335kWABE850
Moto GuzziV9 850BobberLH EURO42016 - 2019ABE850
SuzukiDL1000 V-StromDD2014 - 2016ABE1000
SuzukiDL1000 V-StromWDD0 EURO42017 - 2020ABE1000
SuzukiV-Strom 1050XTWEF0 EURO52020 - 2022ABE1050
SuzukiV-Strom 1050WEF0 EURO52020 - 2023ABE1050
SuzukiV-Strom 800DEWEM0 EURO52023 - ABE800
SuzukiV-Strom 800DEWEM1 EURO52023 - 35 kWABE800
TriumphStreet ScramblerDC01 EURO42017 - 2018ABE900
TriumphStreet ScramblerDC02 EURO42017 - 2018ABE900
TriumphStreet ScramblerDC03 EURO42019 - 2020ABE900
TriumphStreet ScramblerDC03R EURO42019 - 2020ABE900
TriumphStreet ScramblerDC04 EURO52021 - 2023ABE900
TriumphStreet ScramblerDC04R EURO52021 - 202335kWABE900
TriumphStreet TwinDP01 EURO42016 - 2018ABE900
TriumphStreet TwinDP02 EURO42017 - 201835kWABE900
TriumphTiger 1050 Sport115NG2013 - 2015ABE1050
TriumphTiger Explorer 1200V13VG2012 - 2015ABE1200
YamahaMT09RN292013 - 2016ABE900
YamahaMT09RN43 EURO42017 - 2020ABE900
YamahaMT09 Sport TrackerRN292014 - 2014ABE900
YamahaMT09 Street RallyRN292014 - 2014ABE900
YamahaMT09 TracerRN292015 - 2016ABE900
YamahaMT10RN45 EURO42016 - 2020ABE1000
YamahaXSR700RM11 EURO42016 - 2020ABE700
YamahaXSR700RM36 EURO52021 - 2023ABE700
YamahaXSR700LegacyRM36 EURO52023 - ABE700
YamahaXSR700RM37 EURO52021 - 2023ABE700
YamahaXSR700LegacyRM37 EURO52023 - 2023ABE700
YamahaXSR900RN43 EURO42016 - 2021ABE900
YamahaXT1200Z Super TenereDP012010 - 2013ABE1200
Seller details
This website uses cookies to provide the best possible experience. More Information ...
