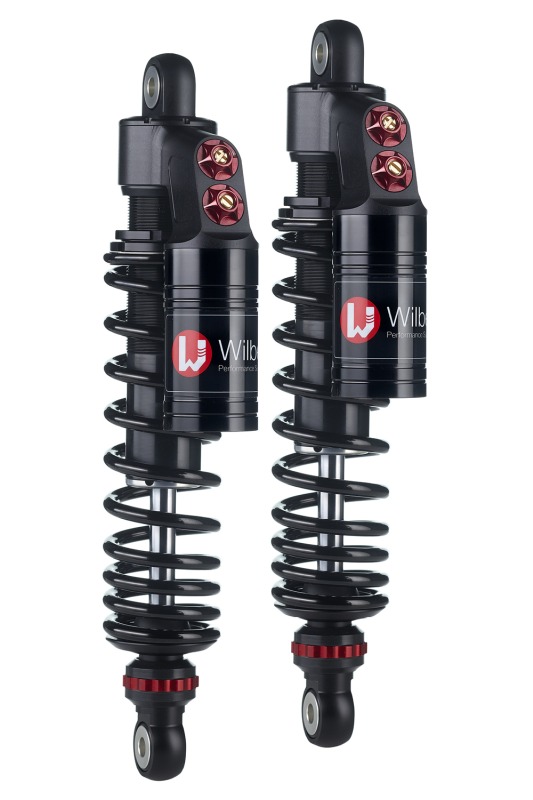

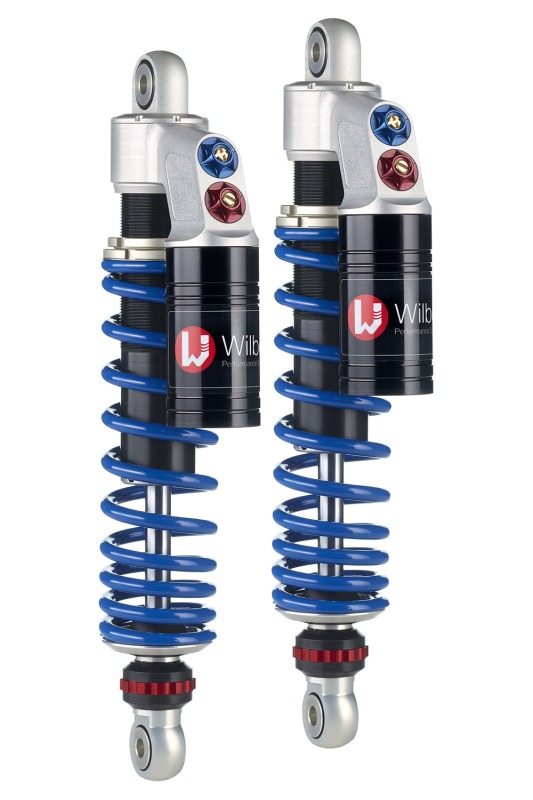

Wilbers shock absorber 633 Adjustline for Moto Guzzi V7 Racer 11-

Bitte Farbe wählen

Wilbers shock absorber 633 Adjustline for Moto Guzzi V7 Racer 11-

€1,899.00 gross €1,595.80 net

Prices incl. VAT plus shipping costs

Product number: WI-633-1024-00

ask for delivery time

Product details

Wilbers Performance Suspension Adjustline 633 Competition P, stereo shock absorbers rear (set), adjustable rebound and compression damping as well as spring preload, balance tank swivelling (before delivery or before mounting the shock absorber), for Moto Guzzi V7 Racer, type LW, model year 11-, with ABE according to scope of application;
For a 30mm lowering, the corresponding fork spring kit is necessary.

General Description

Adjustline 36 mm radial pistons in precision ground cylinders guarantee optimal function without outer diameter space issues.

Adjustline 633
With balance tank on the milled part (Type H40) - the best of the best! The mounting for the pressure reservoir is made of solid aluminium and houses the adjustment units for high- and low-speed compression damping. Hydraulic blocking and shocks to the chassis are prevented by an overpressure valve. The shock absorber is fully adjustable with 22 clicks each for high-speed, low-speed, and rebound. The spring preload can be continuously modified mechanically or even hydraulic. Best materials ensure long service life and high reliability. Damping and spring are, as always, selected according to rider data!

Features:
- With swivelling balance tank (only adjustable at the factory)
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- 22-way adjustable rebound damping
- Continuous spring preload using the supplied hook wrench

Additional information and notes:
- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, for an extra charge, you can have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces in the Nightline are matt black anodised, the spring is black painted and applications serving the setting of the shock absorber are red anodised. For extra charge, see form (please specify colour in the order process)
- Also available in various lengths for raising or lowering: please enquire about lengths
- Please also specify in the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (race track/street/off-road)

The shock absorber can be ordered in various lengths for raising or lowering, possible change -30 mm, please specify when ordering if desired; possible accessories: height adjustment (WI-629-0000-00), additional information: Type 632 / 633 shock absorbers mounted upside down, Please note: For every order, specify rider weight including clothing[kg], pillion weight including clothing[kg], luggage weight[kg], frequency of solo operation without luggage[%], frequency of pillion operation[%], frequency of luggage operation[%], riding style[Touring/Sporty], intended use[Race track/street/Off-road],
