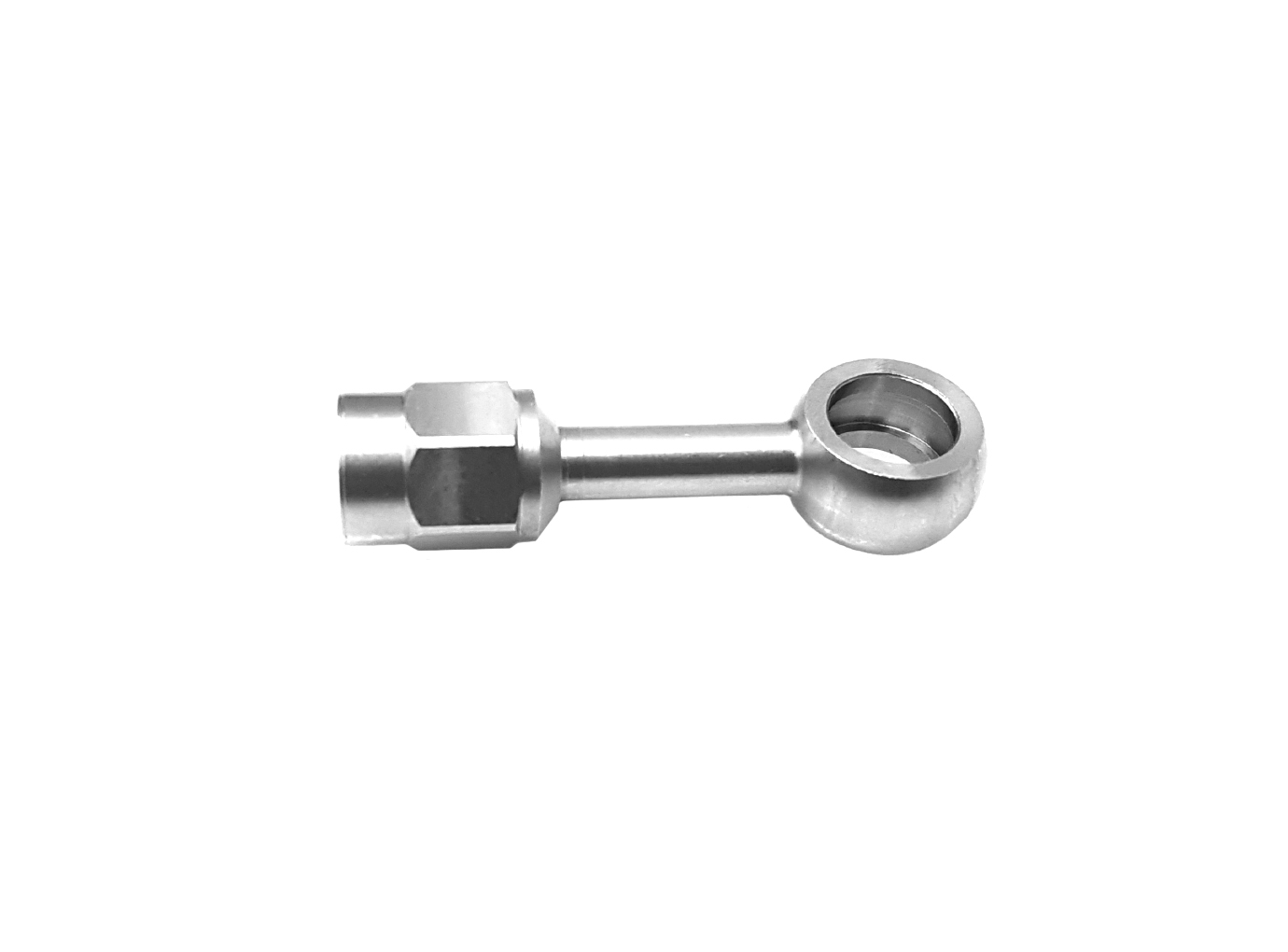

HEL Stainless Steel Adapter for Quick Release Couplings
€15.90 gross
Product number:
HEL-STK-ADAPT
Product details
HEL stainless steel adapter for quick release couplings,10mm banjo and fixed 3/8"x24UNF female thread
General description
This adapter enables the installation of quick release couplings with a 3/8"x24UNF male thread and sealing cone.A special feature of this new adapter is its design, which allows quick release couplings, such as Stäubli SPH.03 type, to be screwed directly into it. The length of the fixed 3/8"x24UNF female thread is designed to ensure a perfect fit for the coupling. Sealing is achieved via the integrated sealing cone.
The adapter can be angled up to 90° or bent sideways. A combination of angled and bent sideways (RB or LB) is also possible at no extra charge. Please enter the desired angle in the comments field if required.
The stainless steel adapter has 1 x 10mm banjo and 1 x 3/8"x24UNF female thread!
Scope of delivery: 1 x stainless steel adapter
Length from banjo centre to end of female thread = approx. 43mm
Note: The quick release couplings shown are not included in the scope of delivery! They are for illustration purposes only!
