Battery battery charger Shido DC 4.0 6V or 12V for all battery types

Product Details

battery charger Shido DC 4.0, for Lithium LiFePO4 and Lead-Acid: GEL, AGM, sealed, Output: 6V or 12V 1A or 4A DC, IP 65, Mains cable approx. 2 m long,

General Description

The SHIDO Dual Battery battery charger DC 4.0 is a modern microprocessor-controlled battery charger for 12-volt and 6-volt motorcycle batteries and can be used for all battery types such as standard lead-acid, AGM, gel and lithium, LiFePO4 batteries.

SHIDO Dual Battery battery charger DC 4.0

SHIDO Dual Battery battery charger DC 4.0 is a modern microprocessor-controlled battery charger for 12-volt motorcycle batteries and can be used for all battery types such as standard lead-acid, AGM, gel and lithium, LiFePO4 batteries.
Advantages of Shido battery chargers for SHIDO DC 4.0:
- Clear separation of charging modes for lithium and lead-acid batteries.
- Improved charging algorithm for lithium and lead-acid modes.
- Battery rescue for deeply discharged batteries.
- Battery status check after charging.
- Charge retention mode with voltage checks every 4 hours.
- Protection against reverse polarity, overcharge, overcurrent, overheating and short circuit.
- User-friendly detection of reverse polarity, discharged or damaged batteries.
- IP 65, waterproof.
- Adaptation to different mains voltages and output of a constant charging current.
- Special AGM mode for sealed batteries.

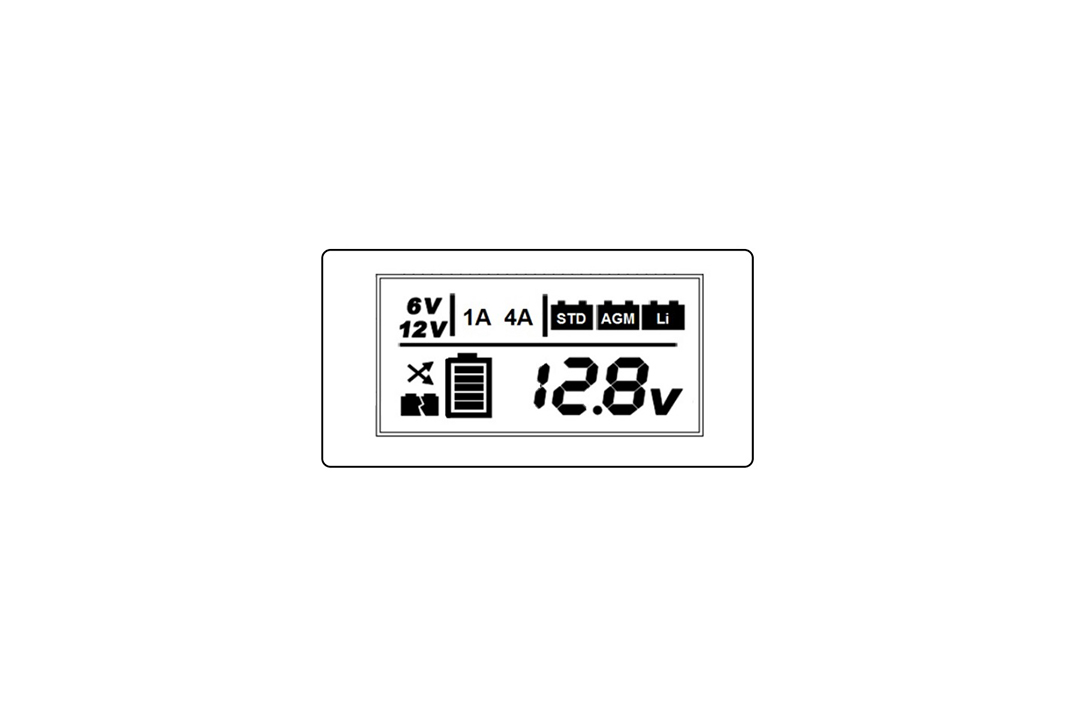

- Excellent digital screen with real-time voltage display.

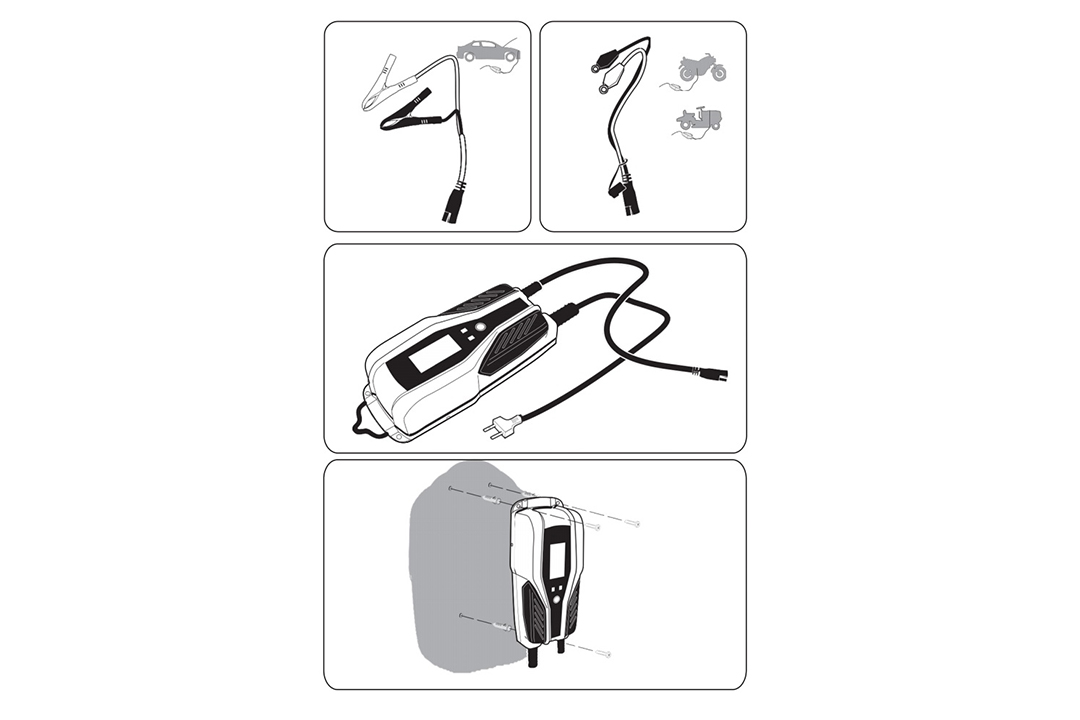

- Hook attachment.
- Suitable for 6V and 12V batteries.
- Switching between 1A and 4A

Technical Data DC 4.0
Battery Types: Lithium LiFePO4, Lead-Acid: GEL, AGM, WET
Input: 220-240V AC 50-60Hz
Output: 6V or 12V 1A or 4A DC
Dimensions: 210 x 87 x 50mm
Weight: 0.6Kg
IP Rating: IP 65
Battery: 4-80 Ah > Charging, 4 - 120 Ah > maintenance

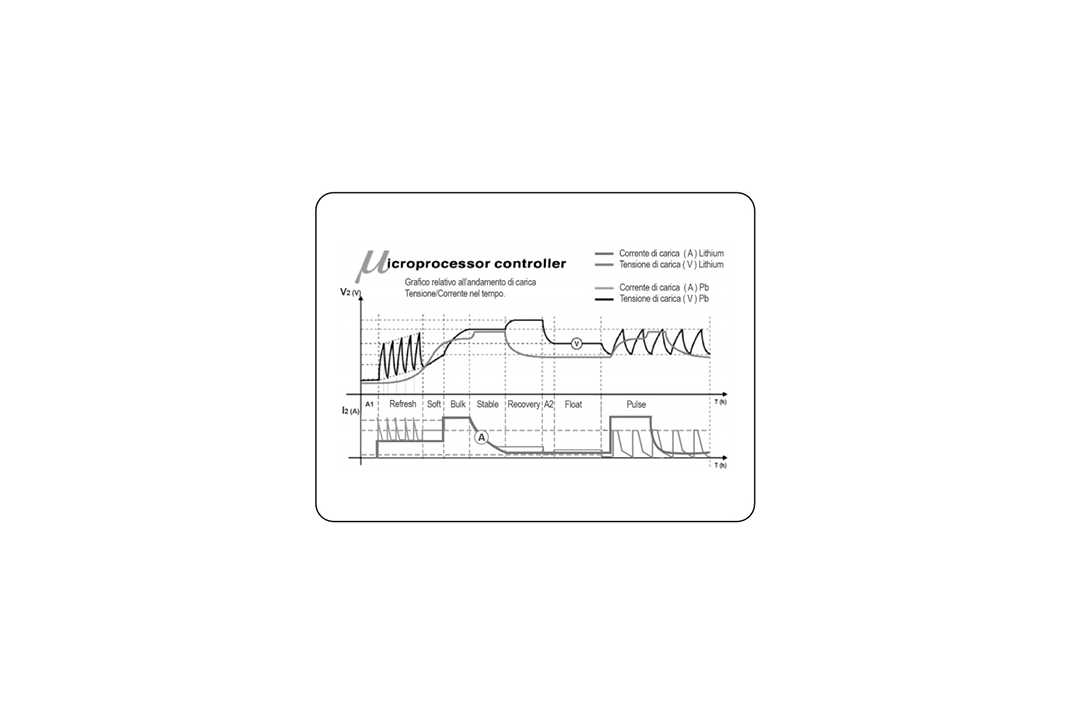

Charging Algorithm for Lead-Acid: 8 Phases.
1. Detection
2. Pulse (Lead-Acid)
3. Restoration
4. Bulk Charge
5. Decreasing Current
6. Absorption
7. Battery Test
8. Floating (Lead-Acid)

Charging Algorithm for Lithium: 7 Phases
1. Detection
2. Restoration
3. Bulk Charge
4. Decreasing Current
5. Absorption
6. Battery Test
7. Monitoring
