CORDONA 400 GP SG Switch Quickshifter for Rapid Bike / Honda Moto3 / PQ8 Sensor
Product Details
Cordona 400 GP SG Switch Quickshifter, an automatic shifter for connection to a Rapid Bike module, Honda Moto3 Dellorto, and also as a replacement for a PQ8 sensor unit; Scope of delivery: Sensor with control unit and aluminium shift rod (130 mm, can be shortened)General Description
The Cordona GP SG Switch Quickshifter features strain gauge / load cell technology without moving parts, thus ensuring very distinct and precise gear. Adaptive direction detection recognises both pull and push activations for upshifting. Based on the rider's input during installation, the system learns whether upshifting is performed by a push or pull action. Programming is carried out via two small tip switch and can be checked on a small LED display.The Cordona GP SG Switch Quickshifter comes in a small, handy form with a diameter of only 14 mm and has no moving parts. Additionally, it includes a wiring harness with a 12V power supply cable, a 170 mm aluminium rod, and M6 bolts and nuts.
Further features:
- Fully computer-controlled, 25Mhz processor
- Simple and fast Plug & Play installation of the electronics
- Automatic compensation for temperature, creep, and vibration
- Preload adjustment on a miniature digital board up to 1m away from the switch, adjustable 1-40 kg
- With Version 1.2, adjustable between normally open and normally closed circuit
- Absolutely waterproof with sealed connections
- Configurable push or pull direction
- The sensor has Magic Threads and can accommodate both right side R/S and left side L/S-threaded bolts at each end, allowing the sensor to be mounted anywhere on the shift rod in either direction
- Shift rod may need to be shortened

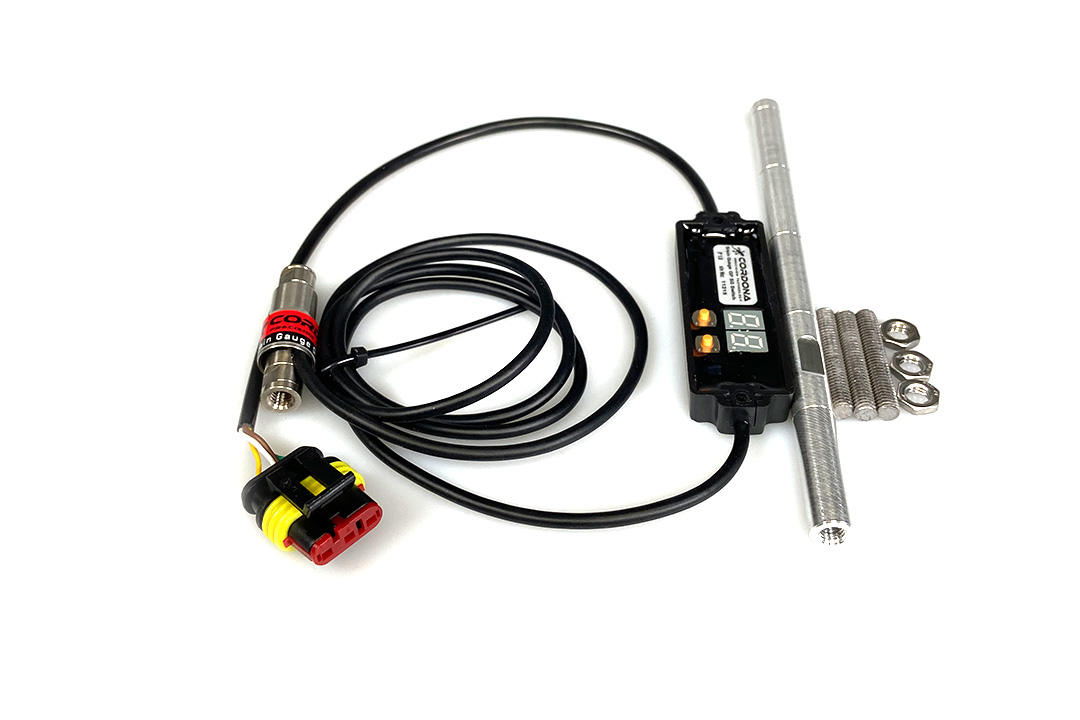

Delivery Scope
Sensor with control unit, aluminium shift rod 170 mm in length (shift rod may need to be shortened)
