EK 520 Z ThreeD - QX2 X-Ring Premium chain - 114 Links
€193.62 gross €215.14 UVP brutto
Product number:
23-110-00-114
Product details

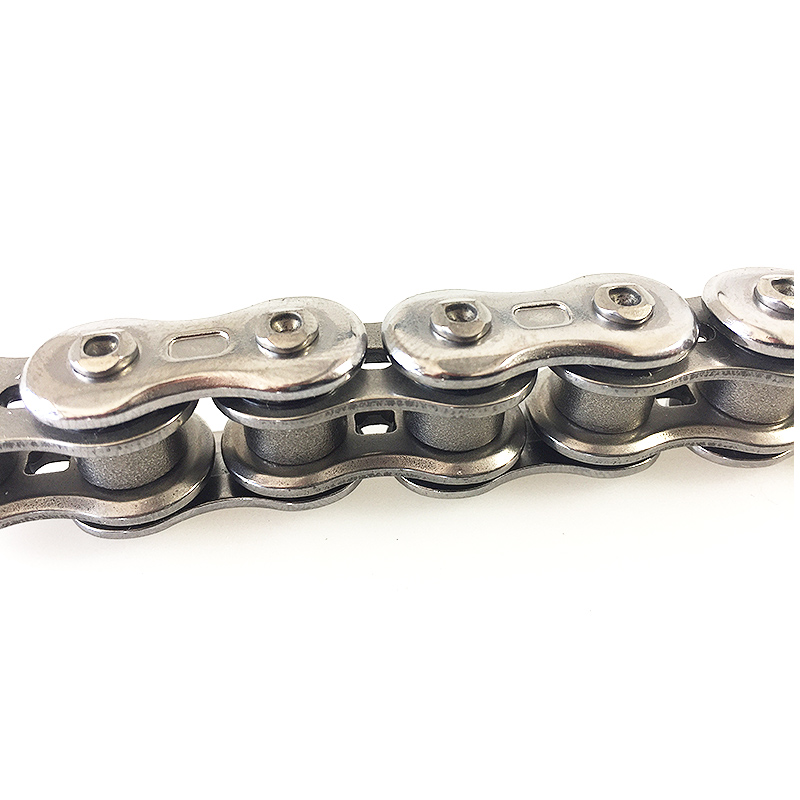

chain ENUMA QX-Ring-chain 520Z ThreeD, ultra reinforced, pitch 520, length 114 links, colour Standard (Steel Grey), incl. hollow rivet link.General Description
ThreeD (3D) motorcyclechains are elegant, strong, detailed, and lightweight. ThreeD chains combine flexibility and strength without losing sight of the design. QX2 X-rings have better wearresistance and increase power, performance by approximately 30% compared to standard SX2 rings, resulting in about 1% more power, performance at the rear wheel.Features:
- The lightweight, low-friction chain is suitable for use on the street and racetrack
- Maximum performance thanks to reduced friction through QX2-ring technology
- Approx. 10% weight saving compared to equivalent high-end chain due to 3D plate shape
- Available in 520, 525, and 530 pitches
- Colour: see item description
Dimensions:
- Inner plate 2.2 mm / Outer plate 2.2 mm
- Pin diameter 5.38 mm
- Overall width 20.8 mm
- Weight per 100 links 1.69 kg
- Tensile strength 4,250 kg
| Colour: | Standard |
|---|---|
| Pitch: | 520 |
| chain number of links: | 114 |
| Manufacturer | Model | Additional Designation | Type | Model Year | Variant/Version | Note | ccm |
|---|---|---|---|---|---|---|---|
| Honda | CB750 Hornet | RH12 EURO5 | 2023 - | 1 | 750 | ||
| Honda | CB750 Hornet | RH12 EURO5 | 2023 - | 1CV | 750 | ||
| Honda | CRF450X | - | 2019 - | 450 | |||
| Honda | CTX700 | RC68 | 2014 - 2016 | 700 | |||
| Honda | NC700S | RC61 | 2012 - 2013 | 700 | |||
| Honda | NC700X | RC63 | 2012 - | 700 | |||
| Honda | NC750S | RC70 | 2014 - 2015 | 750 | |||
| Honda | NC750S | RC88 EURO4 | 2016 - | For SA and SD seat height reduction approx. 35 mm | 750 | ||
| Honda | NC750X | RC72 | 2014 - | 750 | |||
| Honda | NC750X | RC90 EURO4 | 2016 - | 750 | |||
| Honda | NC750X | RH09 EURO5 | 2021 - | 750 | |||
| Husqvarna | 701 Svartpilen | HQV701 EURO4 | 2018 - | 701 | |||
| Husqvarna | 701 Svartpilen | HQV701 EURO5 | 2021 - | 701 | |||
| Husqvarna | 701 Vitpilen | HQV701 EURO4 | 2018 - | 701 | |||
| Husqvarna | 701 Vitpilen | HQV701 EURO5 | 2021 - | 701 | |||
| Kawasaki | ER6f | EX650A | 2005 - 2008 | 650 | |||
| Kawasaki | ER6f | EX650C | 2009 - 2011 | 650 | |||
| Kawasaki | ER6f | EX650E | 2012 - | 650 | |||
| Kawasaki | ER6n | ER650A | 2005 - 2008 | 650 | |||
| Kawasaki | ER6n | ER650C | 2009 - 2011 | 650 | |||
| Kawasaki | ER6n | ER650E | 2012 - | 650 | |||
| Kawasaki | ER6n | ER650E | 2012 - 2016 | 650 | |||
| Kawasaki | Ninja 650 | EX650K EURO4 | 2017 - | 650 | |||
| Kawasaki | Ninja 650 | EX650KA2 EURO4 | 2017 - | 35 kW | 650 | ||
| Kawasaki | Ninja 650 | EX650M EURO5 | 2020 - | 650 | |||
| Kawasaki | Ninja 650 | EX650M EURO5 | 2021 - | 650 | |||
| Kawasaki | Ninja 650 | EX650MA2 EURO5 | 2021 - | OEM 35 kW variant | 650 | ||
| Kawasaki | Ninja 650 | EX650MA2 EURO5 | 2021 - | 650 | |||
| Kawasaki | Ninja 650 | EX650S EURO5+ | 2023 - | 650 | |||
| Kawasaki | Ninja 650 | EX650SA2 EURO5+ | 2023 - | A2 | OEM 35 kW variant | 650 | |
| Kawasaki | Versys 650 | LE650A | 2007 - 2010 | 650 | |||
| Kawasaki | Versys 650 | LE650C | 2011 - 2014 | 650 | |||
| Kawasaki | Versys 650 | LE650C | 2010 - 2014 | 650 | |||
| Kawasaki | Versys 650 | LE650E | 2015 - 2016 | Euro3 | 650 | ||
| Kawasaki | Versys 650 | LE650E | 2015 - 2016 | 650 | |||
| Kawasaki | Versys 650 | LE650E | 2015 - 2016 | also LT | 650 | ||
| Kawasaki | Versys 650 | LE650E EURO4 | 2017 - | 650 | |||
| Kawasaki | Versys 650 | LE650E EURO4 | 2017 - | with ABS | 650 | ||
| Kawasaki | Versys 650 | LE650EA2 EURO4 | 2017 - | 650 | |||
| Kawasaki | Vulcan S | EN650A | 2015 - 2016 | 650 | |||
| Kawasaki | Z650 | ER650H EURO4 | 2017 - 2019 | 650 | |||
| Kawasaki | Z650 | ER650HA2 EURO4 | 2017 - 2019 | 650 | |||
| Kawasaki | Z650 | ER650K EURO4 | 2020 - | 650 | |||
| Kawasaki | Z650 | ER650K EURO5 | 2021 - | 650 | |||
| Kawasaki | Z650 | ER650KA2 EURO4 | 2020 - | OEM 35 kW variant | 650 | ||
| Kawasaki | Z650 | ER650S EURO5+ | 2023 - | 650 | |||
| Kawasaki | Z650 | ER650SA2 EURO5+ | 2023 - | A2 | 650 | ||
| Kawasaki | Z650RS | ER650M EURO5 | 2021 - | 650 | |||
| Kawasaki | Z650RS | ER650MA2 EURO5 | 2021 - | 650 | |||
| Kawasaki | Z650RS | ER650R EURO5+ | 2024 - | 650 | |||
| Kawasaki | Z650RS | ER650RA2 EURO5+ | 2024 - | 650 | |||
| Kawasaki | Z800 | ZR800A | 2013 - 2016 | 800 | |||
| Kawasaki | Z800 | e Version | ZR800C | 2013 - | 800 | ||
| Kawasaki | Z800 | ZR800F | 2016 - | 800 | |||
| Kawasaki | ZX-4R Ninja | ZX400P EURO5+ | 2024 - | P1 / E | 400 | ||
| Kawasaki | ZX-4RR Ninja | ZX400P EURO5+ | 2024 - | S1 / E | 400 | ||
| KTM | 690 SMC R | KTM 690 LC4 | 2007 - 2009 | 690 | |||
| MZ | Baghira 660 | Street Moto | MUZ660E | 1998 - 2006 | 17 inch | 660 | |
| MZ | Baghira 660 | MUZ660E | 1998 - 2006 | 17 inch | 660 | ||
| MZ | Baghira 660 | MUZ660E | 1998 - 2006 | 21 inch | 660 | ||
| MZ | Baghira 660 | Black Panther | MUZ660E | 1998 - 2006 | 17 inch | 660 | |
| Suzuki | DR650 | S | SP41B | 644 | |||
| Suzuki | DR650 | RS | SP42B | 1990 - 1991 | 650 | ||
| Suzuki | DR650 | RSE | SP43B | 1991 - 1996 | 650 | ||
| Suzuki | DR650 | R | SP44B | 1991 - 1995 | 650 | ||
| Suzuki | DR650 | SP45B | 1994 - 1995 | RE/REU | 650 | ||
| Suzuki | RV200 Van Van | WVBT | 2016 - 2019 | 200 |
